Duckworth 30′ Offshore XL w/ Dinette & Galley

Standard features on this Package
Hull Features:
116″ full top w/ forward leaning windows, Alaskan bulkhead, red and white LED cabin lights, 3″ full length top grab rails, offset aisleway cabin & side mounted net and rod holders
V-berth cuddy cabin with 24″ Lexan bow access hatch, side windows, storage, shelving, cushions, and 2 red/white LED cabin lights
3 window head w/ floor drain and curtain package
Swept bow with rails
Self-draining aft deck w/ .190″ metal flooring and non-skid coating
25″ Twin Engine Offshore bracket with integral bottom sheet & full width swim platform
Full reverse chine bottom design
Transom bait box with split cutting board lid
Transom Walk-thru door
Extruded side/bottom chine w/ formed toe rail & keel strip
Dual aft sub-floor fish boxes with self draining lids and individual macerator pumps
Rear deck sub-floor storage compartment
cabin sub-floor storage
Blank Stbd dash with room for 2-12″ or 1-16″ flush mount screens
Port console with storage
Billet aluminum welded bow eye & stern eyes
7-11″ billet aluminum welded cleats
Pressure tested sub-floor fuel cell – diurnal system compliant
Sound deadening foam package
Exterior Features:
Non-skid foam padding on gunwales
Vinyl side graphics
Zinc anodes
Stainless steel thru-hull fittings below water line w/ seacock valves
forward double scuppers in rear deck
Oversized 24″ evacuation hatch in the v-berth
Rigging Features:
Driver, passenger, and center windshield pantograph windshield wipers
Stainless steel Marine horn
Driver dash w/ stainless steel LED switches, fuel gauge, trim tab controls, and USB port
LED navigation & anchor lights
Electric trim tabs on brackets
3- Auto bilge pumps & 1 high water bilge alarm
Washdown kit
Single group 27 AGM battery for each motor
Dual group 31 AGM battereis for house
Remote battery switches for each battery bank w/ emergency start crossover
Fuel water seperator
Hydraulic steering w/ Tilt helm
Carbon Monoxide Detector in V-berth and Main Cabin
3 additional USB ports throughout boat
Interior Features:
Carpeted cabin sidewalls
Choice of gray or tan interior package
Rod holders

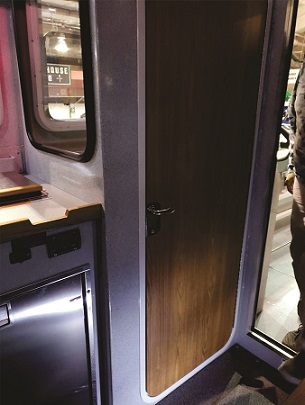

Framed glass package including 3 piece fixed windshield, sliding side windows w/ screens, rear bulkhead windows, V-berth side windows & lockable sliding Alaskan bulkhead door
Stbd Helm Severe Duty Mariner suspension seat w/ swivel on aluminum rise w/ drawer & foot rest
Dual Passenger Severe Duty Mariner suspension seats w/ swivels
Dinette with seating for 4 w/ 2 drawers, converts to bed w/ insert cushion
Overhead and floor courtesy lighting
Locking transom access composite doors
7-Stainless steel cup holders
Side tray rod racks
Marine grade plywood floors with vinyl floor covering in cabin
Rear cockpit gunwale side tray access step/seats with grab handles
Dual side trays w/ drains
3 window marine head with electric toilet, curtains and 21 gal. holding tank
Galley with sink, faucet, Ice Box, and 21 gal. fresh water tank
V-berth Sleeper with room for 2 people (approx 78″L x 45″W)
V-berth cabin doors
Bonus sleeping compartment/storage area
Category:

Click here to compare Duckworth’s Offshore Packages

Yamaha

APX. SPEED RPM G.P.H.
TWIN F300 31MPH 4000 1.50
TWIN F300 50MPH 6000 1
30′ Duckworth Offshore XL Spec. TWIN Yamaha 300DEC 4-Stroke Spec. EZ Loader Trailer Spec.
Length 34’ 4 Cyl. Model: TB 2630/12000
Beam 114” 4.2L Galvanized
Bottom Width 96” EFI, DOHC, VCT Weight 2431 lbs.
Bottom Gauge .250″ Weight 1124 Triple Axle
Side Gauge .160” Bunks
Deadrise Forward 26 Brakes
Deadrise Aft 19
Weight lbs. 7140 lbs.
Max H.P. 850 HP
